Charged pion simulation validation with ATLAS Cu/liquid Argon hadronic calorimeter: shower shapes (II)

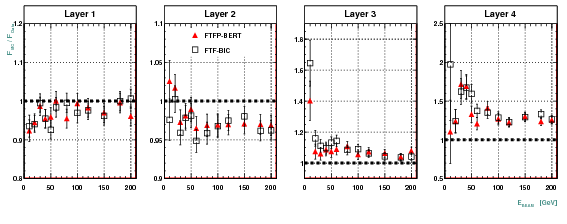

Pion shower shapes. MC/Data Ratio of the fraction of energy in each longitudinal layer.

The MC/Data ratio is shown as a function of the beam energy. Each plot shows the fraction of energy in each longitudinal layer (long respectively 1.5/2.9/3.0/2.8 lambda). Results obtained with Geant4 9.4. Comparison of two physics lists.
Reference: Presentation at LCG Physics Validation Meeting
